Qubic System QS-220 (3 DOF)

CHF 9,559.90
Tax included. Shipping calculated at checkout.

Erleben Sie Rennsimulation auf höchstem Niveau mit dem QS-220 von Qubic
System. Diese 3DOF-Bewegungsplattform bietet leises, präzises Feedback
und anpassbare Bewegungen, perfekt für professionelle und private
Rennerlebnisse. Tauchen Sie ein in realitätsnahe Rennen mit
unvergleichlicher Intensität.


Delivery Time: Auf Anfrage

Description
The QS-220 motion system from Qubic System is a state-of-the-art 3DOF motion platform designed for professional racing simulators and home users. Equipped with quiet, linear actuators and impressive precision, it provides realistic vehicle feedback. The compact and modular design allows for easy integration into various cockpits. With the QubicManager software, movements can be customized and diagnostics performed. The QS-220 is ideal for those seeking an intense racing experience with a maximum actuator speed of 800 mm/s and an acceleration of 0.8 G.
Technical Details

QS-220 Motion Plattform:

  • Architektur: 3DOF (3 Degrees of Freedom)
  • Gewicht: 350 kg (772 lbs)
  • Maximale Nutzlast: 150 kg (330 lbs) im Performance Mode
  • Abmessungen:

Breite: 1603 mm (63 in)

Länge: 1603 mm (63 in)

Höhe: 769 mm (30 in)

  • Stromversorgung: 230V 50-60Hz (Durchschnittliche Leistung: 199W, Spitzenstrom: 11A)
  • Bewegungsbereich:

Aktuatorhub: 100 mm (3,93 in)

Max. Geschwindigkeit: 800 mm/s pro Aktuator

Max. Beschleunigung: 0.8 G

Latenz: <8 ms

What's included

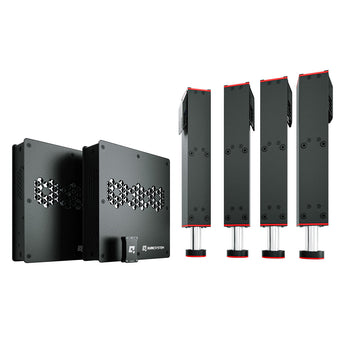

4x Linearantrieb mit Stabilisierungsplatten

2x Leistungskabinet (Steuermodul)

1x Bewegungsblockierungskabel (up-link/down-link) – 2 m lang

1x Netzkabel

1x QS-MC6 Motion Controller Set:

Software: QubicManager für Bewegungsanpassung und Diagnosen
